Car Battery

Car Battery

FEATURES

  • High Cranking Power
  • Long LIfe
  • Low water loss
  • Long Reserve Capacity
  • Factory charged and ready to use condition

TECHNICAL SPECIFICATION

Battery
Type		 Capacity in AH
at 27°C		 Dimensions (mm) Charging Current
in (AH)		 Electrolyte Volume in
Ltrs. (Sp. Gr. 1.200)		 Layout
Container
Type		 C20 C5 L W O/A Ht.
Automotive Series

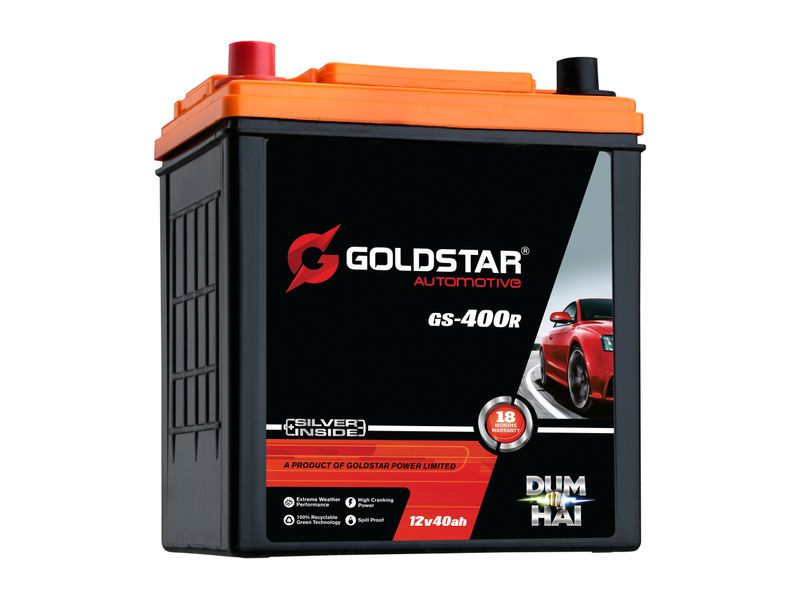

GS-400R NS 40 40 32 193 127 222 3.8 2.1 A
GS-400L NS 40 40 32 193 127 222 3.8 2.1 B
GS-450L NS 60 45 36 235 127 222 4.5 2.9 B

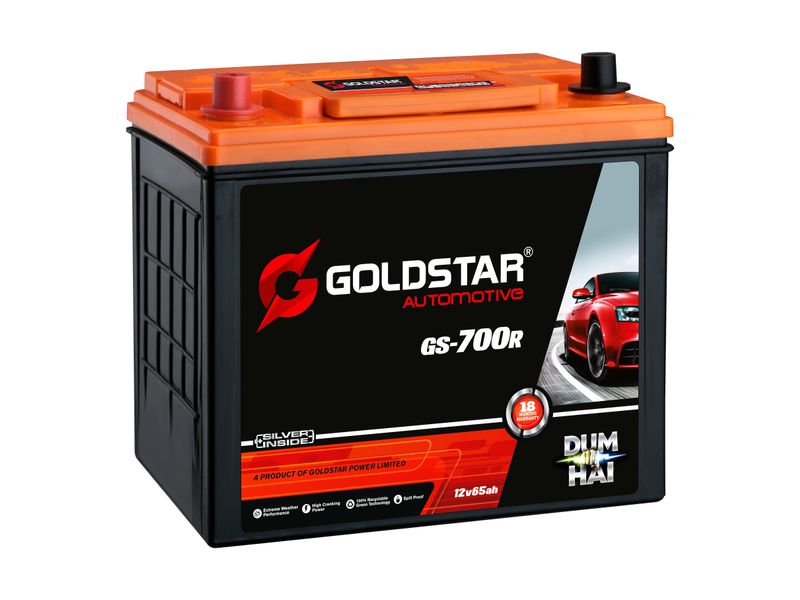

GS-700R N 50z 65 52 259 172 221 6.5 4.2 A
GS-700L N 50z 65 52 259 172 221 6.5 4.2 B
Din Series

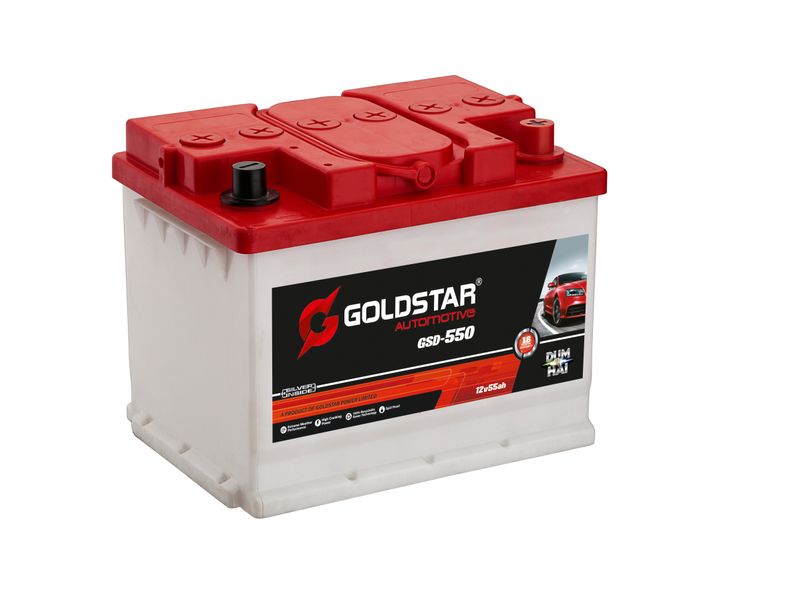

GSD-550 DIN 55 55 44 241 175 187 5.5 4.0 B

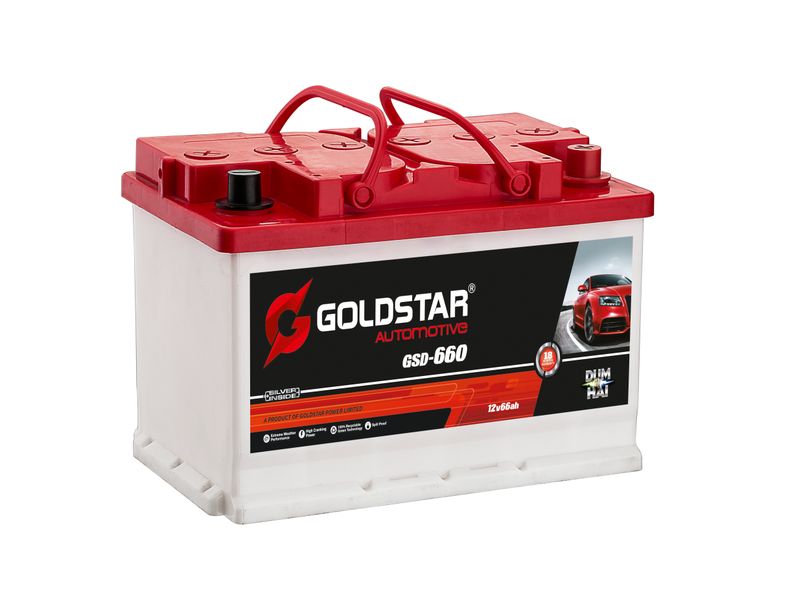

GSD-660 DIN 66 66 53 277 176 190 6.6 3.6 B

Battery Maintenance

  • Keep the battery top clean and dry . Apply either Petroleum Jelly or Vaseline for better contact between terminal and clamps and to prevent corrosion.
  • Top up only with Distilled water.
  • Be sure to inspect your vehicle's electrical system regularly, especially the regulator voltage setting.
  • Get your battery serviced regularly from your nearest authorised GOLDSTAR dealer.

Conditions of Fully Charged

  • Make sure total Ah input is completed (Amp X duration = input Ah).
  • 3 consecutive hourly readings of specific gravity and voltage becomes constant.
  • Top of charge voltage will be around 15.5 V - 16.5V.
  • All cells should gas freely.

Specific Gravity of electrolyte in fully charged condition: 1.255 ± 0.005

Advantages

  • Low internal impedance.
  • Robust Construction.
  • Can deliver very high currents
  • Wide range of sizes and capacities available
»
